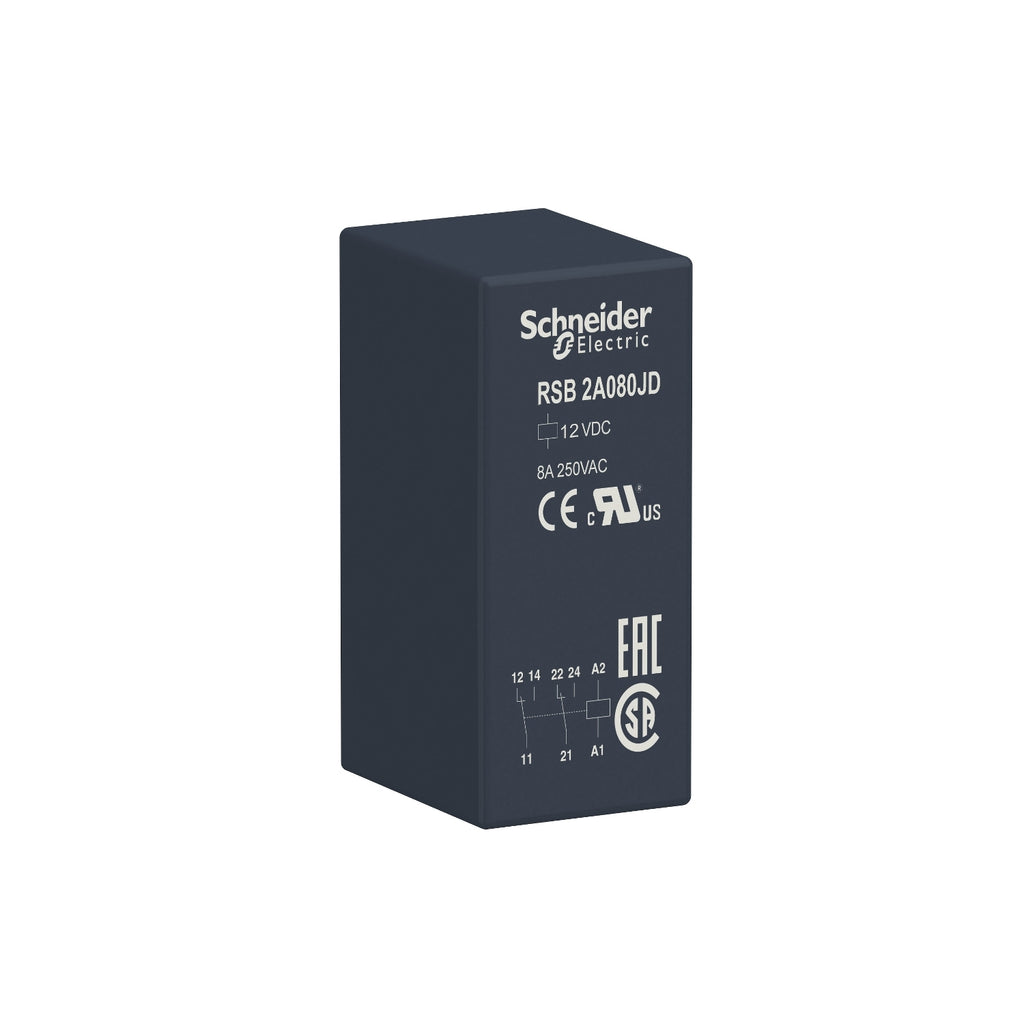

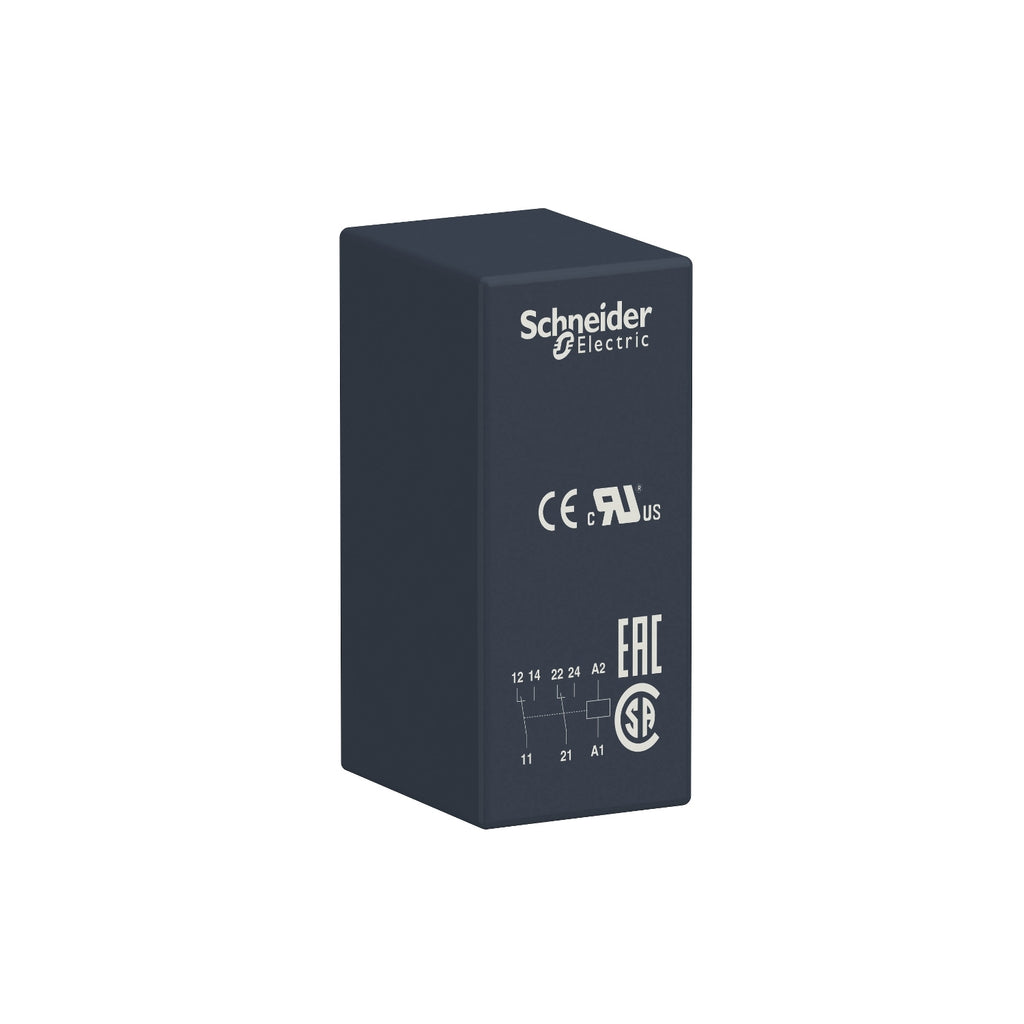

| Model | RSB2A080BD | RSB2A080JD |
| Product type | 8-pin Plug-in relay | 8-pin Plug-in relay |
| Contacts type and composition | 2 C/O | 2 C/O |
| Contact operation | Standard | Standard |
| [Uc] control circuit voltage | 24 V DC | 12 V DC |
| [Ithe] conventional enclosed thermal current | 8 A at -40…40 °C | 8 A at -40…40 °C |
| Status LED | Without | Without |
| Control type | Without push-button | Without push-button |

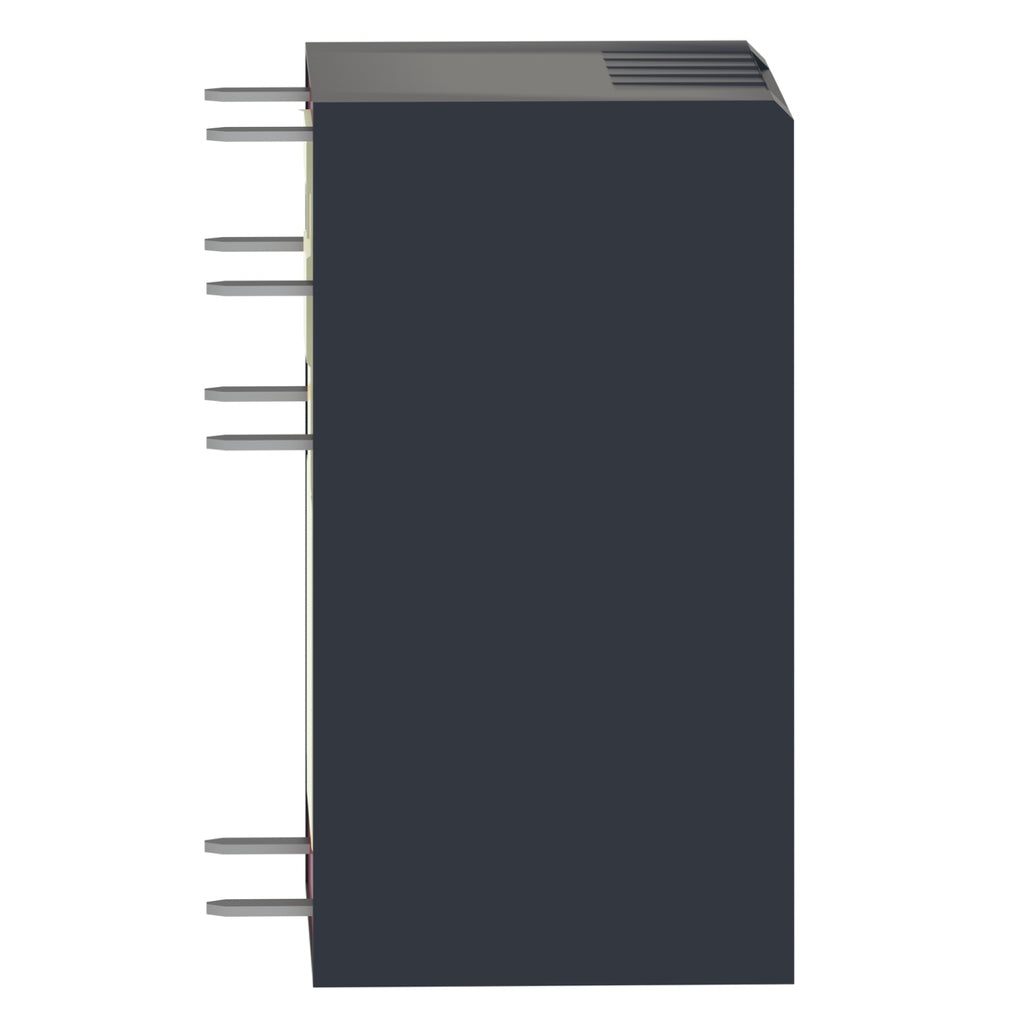

| Shape of pin | Flat (PCB type) | Flat (PCB type) |
| average coil resistance | 1440 Ohm network: DC at 20 °C +/- 10 % | 360 Ohm network: AC at 20 °C +/- 10 % |
| [Ue] rated operational voltage | 16.8…36 V DC | 8.4…18 V DC |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60947 | 400 V conforming to IEC 60947 |
| [Uimp] rated impulse withstand voltage | 3.6 kV conforming to IEC 61000-4-5 | 3.6 kV conforming to IEC 61000-4-5 |
| Contacts material | Silver alloy (AgNi) | Silver alloy (AgNi) |
| [Ie] rated operational current | 4 A (AC-1/DC-1) NC conforming to IEC | 4 A (AC-1/DC-1) NC conforming to IEC |
| 8 A (AC-1/DC-1) NO conforming to IEC | 8 A (AC-1/DC-1) NO conforming to IEC | |
| Minimum switching current | 10 mA | 10 mA |
| Maximum switching voltage | 300 V DC conforming to IEC | 300 V DC conforming to IEC |
| minimum switching voltage | 12 V | 12 V |
| Maximum switching capacity | 2000 VA/224 W | 2000 VA/224 W |
| resistive rated load | 8 A at 250 V AC | 8 A at 250 V AC |
| 8 A at 28 V DC | 8 A at 28 V DC | |
| Minimum switching capacity | 120 mW at 10 mA, 12 V | 120 mW at 10 mA, 12 V |
| Operating rate | <= 600 cycles/hour under load | <= 600 cycles/hour under load |
| <= 18000 cycles/hour no-load | <= 18000 cycles/hour no-load | |
| Mechanical durability | 30000000 cycles | 30000000 cycles |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 NO | 100000 cycles, 8 A at 250 V, AC-1 NO |
| 100000 cycles, 4 A at 250 V, AC-1 NC | 100000 cycles, 4 A at 250 V, AC-1 NC | |
| Operating time | 20 ms operating | 20 ms operating |
| 20 ms reset | 20 ms reset | |
| Marking | CE | CE |
| average coil consumption | 0.45 W DC | 0.45 W DC |
| Drop-out voltage threshold | >= 0.1 Uc DC | >= 0.1 Uc DC |
| Safety reliability data | B10d = 100000 | B10d = 100000 |
| Protection category | RT I | RT I |
| Test levels | Level A group mounting | Level A group mounting |
| Operating position | Any position | Any position |
