Description

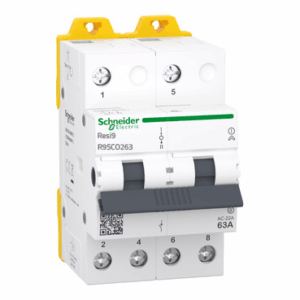

| Product or component type | Changeover switch |
| Device application | Change source of supply |
| poles description | 2P |
| Contacts type and composition | 2 C/O |
| [Ie] rated operational current | 63 A |
| [Ue] rated operational voltage | 400/415 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Utilisation category | AC-23A and AC-22A |
| [Ui] rated insulation voltage | 690 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Icm] peak rated short-circuit making capacity | 1.26 kA |
| [Icw] rated short-time withstand current | 1.26 kA during 1 s at 400/415 V |
| Rated operational power in W | 7.8 kW at 240 V (AC-23A) |
| 7.5 kW at 230 V (AC-23A) | |
| 12 kW at 240 V (AC-22A) | |
| 11.6 kW at 230 V (AC-22A) | |
| Control type | Toggle 3 positions |
| Mounting support | 35 mm DIN rail |
| Mounting position | Vertical |
| Any position | |
| Locking options description | Padlock in ON position |
| Connections – terminals | Screw terminals (top and bottom) 1…16 mm² flexible |
| Screw terminals (top and bottom) 1…16 mm² flexible with ferrule | |
| Screw terminals (top and bottom) 1…25 mm² rigid | |
| Wire stripping length | 12 mm for top and bottom connection |
| Tightening torque | 4 N.m top and bottom |
| Suitability for isolation | Yes |
| Contact position indicator | Yes |
| Electrical durability | 7000 cycles |
| Mechanical durability | 10000 cycles |
| 9 mm pitches | 6 |
| Height * Width * Depth | 85 * 52.5 * 44 mm |
| Net weight | 230 g |
