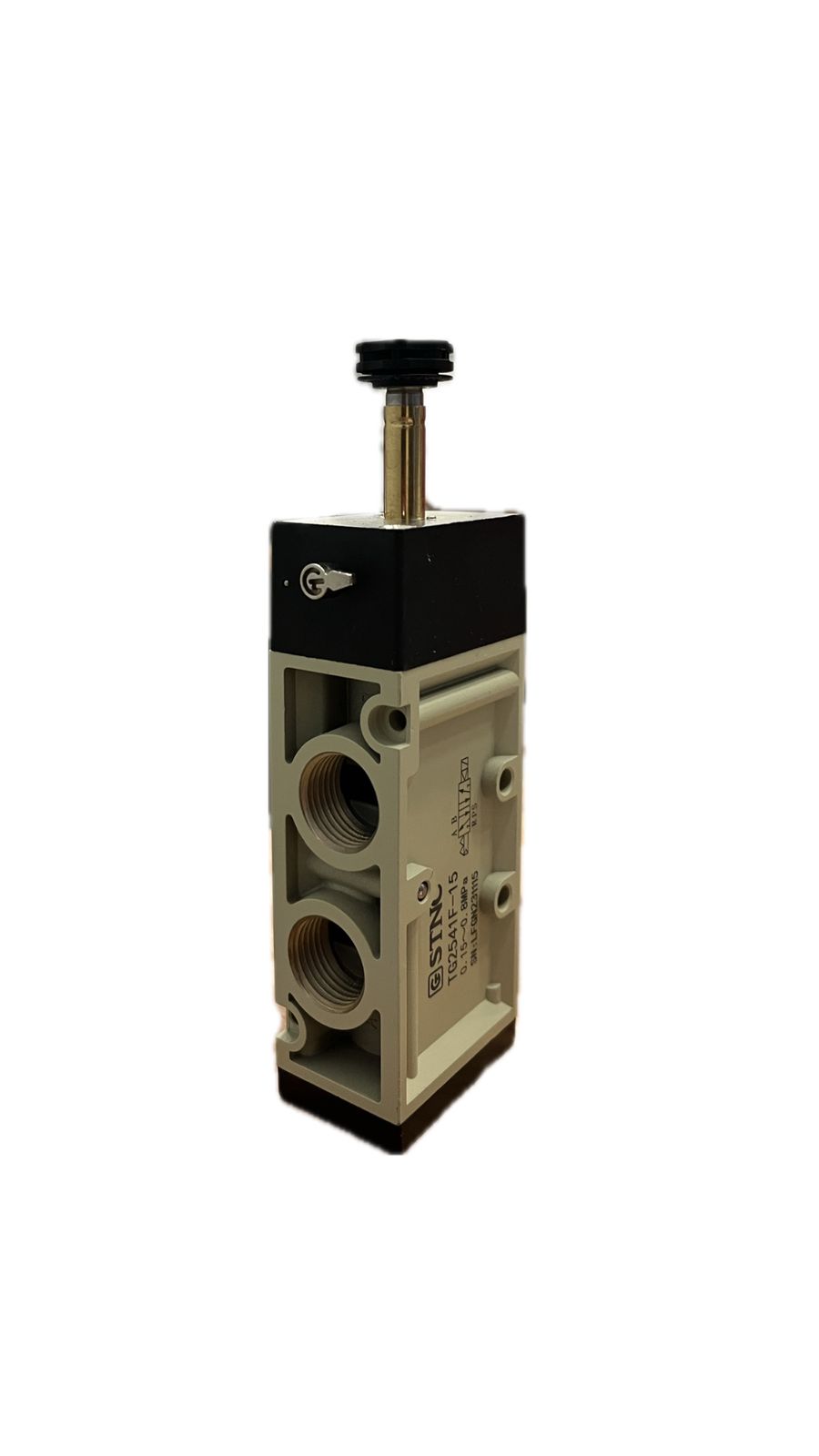

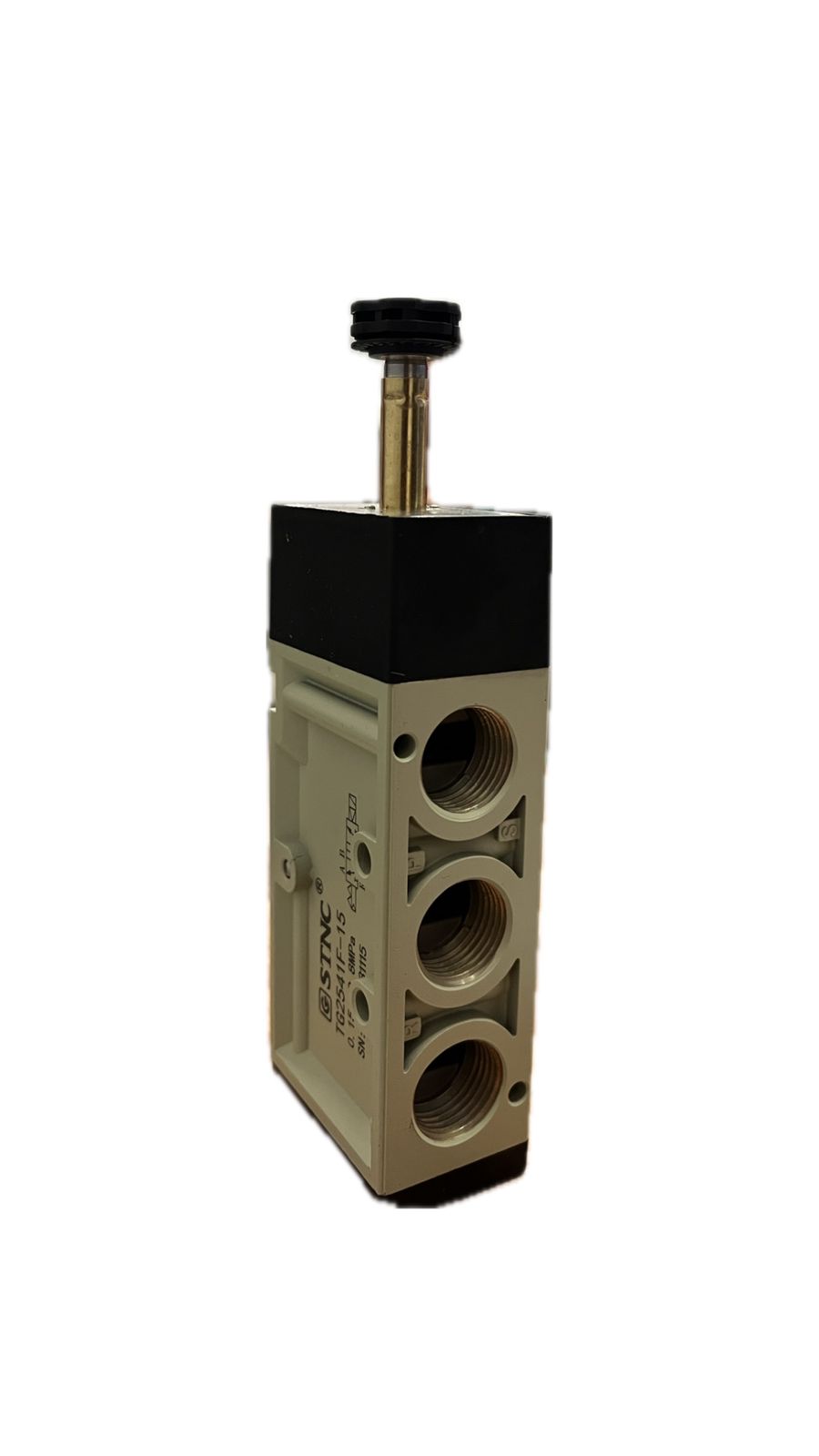

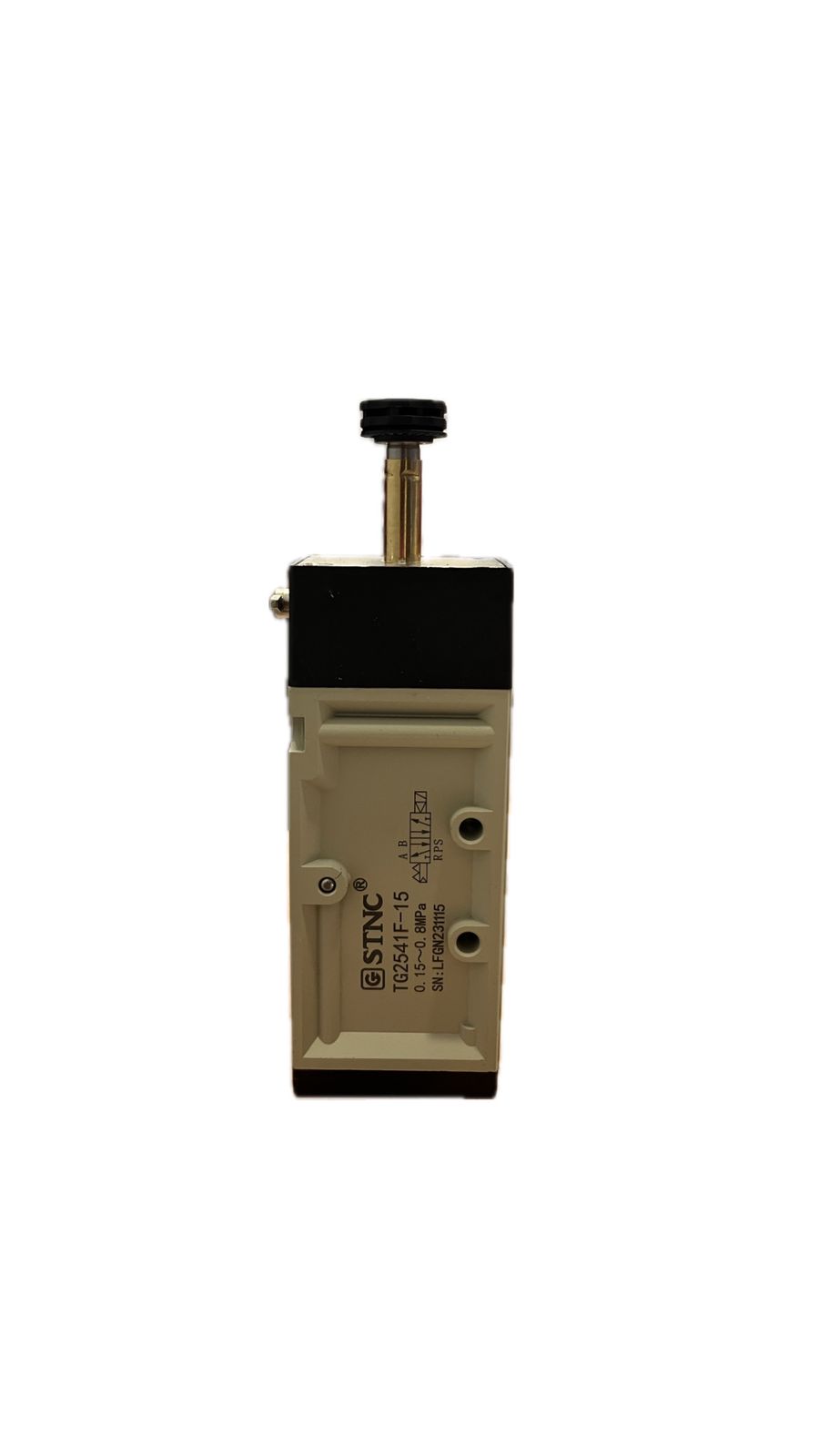

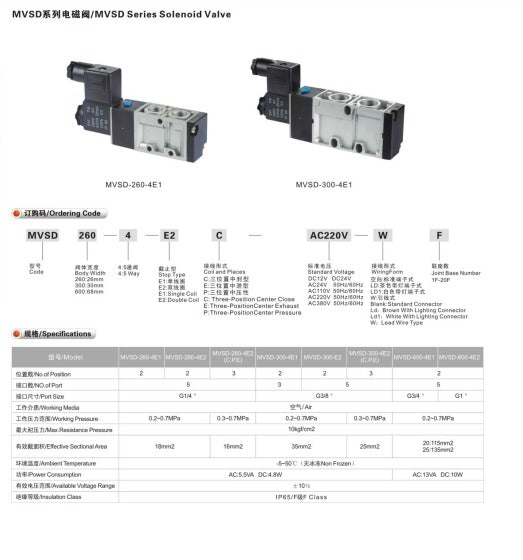

Solenoid Pneumatic Valve 5 Way 2 Position 5/2 (Without Coil) Taiwan Model : MVSD-

Type: 5/2 Solenoid Valve (5 ports – 2 positions)

Operation:

• Air enters from one inlet port.

• The valve shifts between two positions (on/off or direction change).

• Air exits through either the working port or exhaust.

Actuation: Single coil (solenoid-operated), spring return to default position.

Maximum Operating Pressure: 0.15 - 0.8 MPA

Operating Temperature:  50 °C

Applications:

• Pneumatic systems

• Controlling pneumatic cylinders

• High-pressure industrial automation

• coil sold seperately for purchase Pneumatic Solenoid Coil , suitable for use with 5/2 and 3/2 pneumatic valves
